Precise Motion Data Collection & Output

Teleoperation makes robots more intuitive and engaging. By utilizing smart gloves and end-effector pose devices, the motion data of the human arm and hand are retargeted to the robotic arm and dexterous hand, enabling remote control.

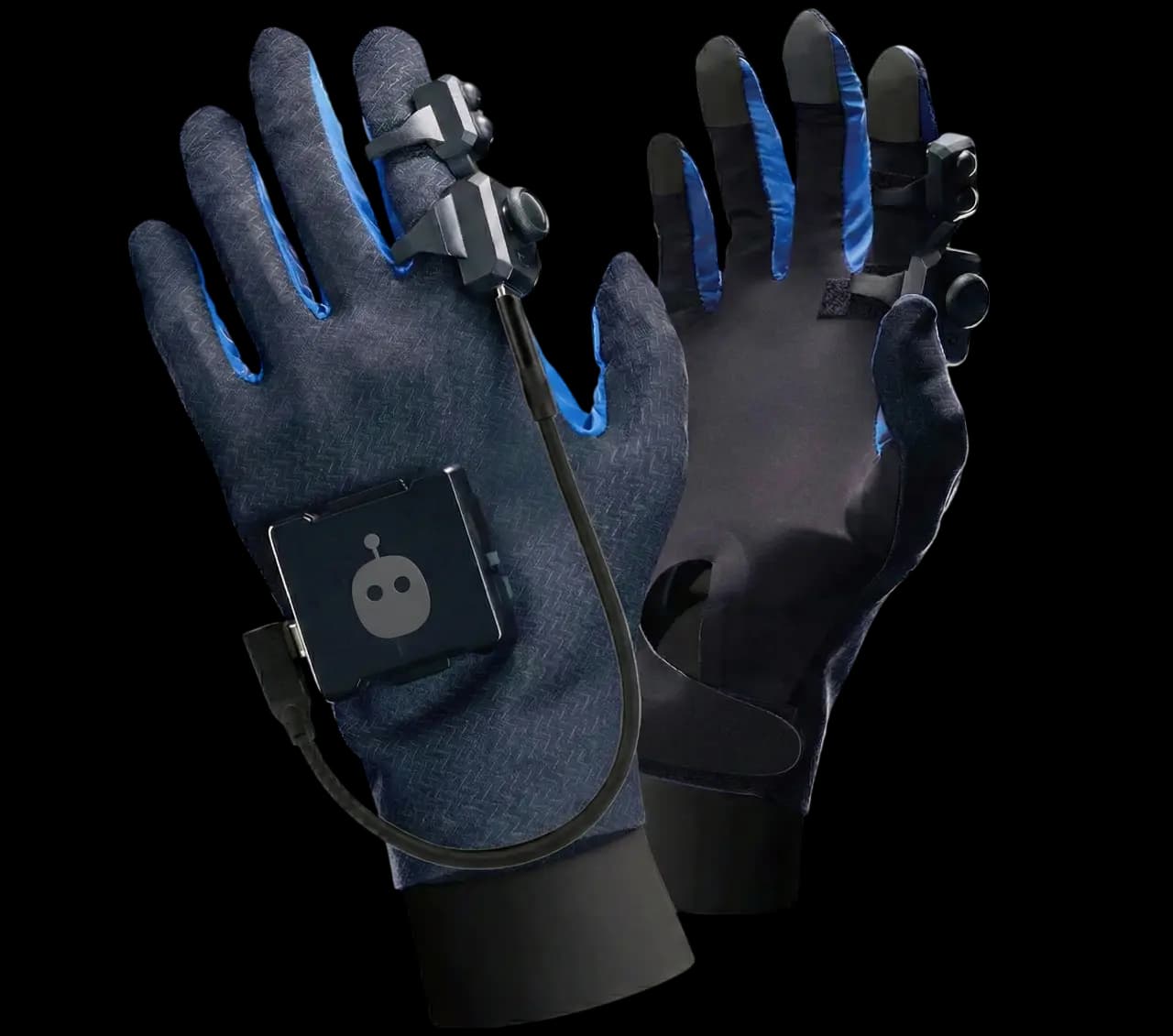

UDEXREAL UDCAP C1 Glove

Stretchable Elastic Sensor

0%~50% stretchable range

Precision Control

0.1° min resolution

40g lightweight design

Core TechnologyPioneering Stretchable Elastic Sensor

Based on self-developed innovative elastic materials, UDEXREAL produces stretchable and elastic sensors, placing the company at the forefront of this cutting-edge technology. Currently, UDEXREAL is the world's first company to successfully commercialize this technology.

High-Elasticity & Stretchability

Pioneering stretchable elastic sensor technology with 0%~50% stretchable range, providing flexible and comfortable fit.

0%~50% Range

Advanced Conductivity

Self-developed innovative elastic materials with superior conductivity for precise motion data collection.

Elastic Materials

Anti-Fatigue & Anti-Extrusion

Durable construction designed for long-lasting performance and robust operation in demanding environments.

Durable Design

Micron-Level Precision

1mm precision sensing with 0.1° minimum resolution for accurate hand motion tracking and data output.

0.1° Resolution

Real-Time Tracking

120Hz output frequency with less than 10ms data latency for responsive teleoperation and control.

120Hz / <10ms

SDK Integration

C++ SDK available for real-time hand motion data integration, enabling seamless development and customization.

C++ SDK

Wireless Connectivity

2.4G connection mode with up to 15m transmission distance for flexible operation and setup.

15m Range

Comfort & Washable

5A Antibacterial fabric with lightweight 40g design for comfortable extended use and easy maintenance.

40g / Washable

Technical Specifications

UDEXREAL UDCAP C1 delivers precision haptic control with industrial-grade reliability

Item
UDEXREAL UDCAP C1
Weight (single)
40g
Output Frequency
120Hz
Transmission Distance
Up to 15m
Connection Mode
2.4G
Charging Interface
Type-C
Battery Life
>10h
Data Latency
<10ms
Stretchable Range
0%~50%
Min Resolution
0.1°
Fabric
5A Antibacterial
Precision
1mm (Micron level)
Comfort
Anti-fatigue design

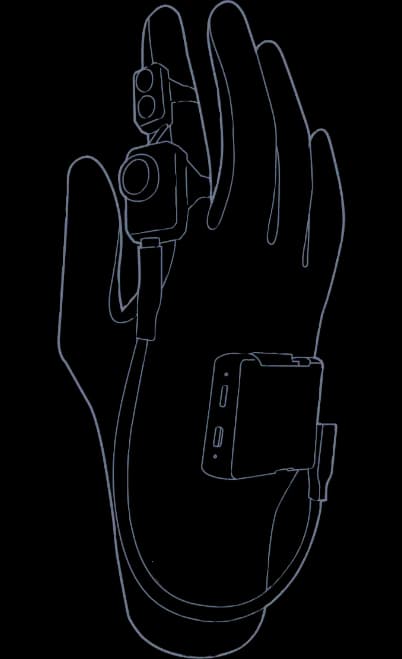

DH116 Front Dimensions

System Integration

Compatible with ROS 2, UDEXREAL HandDriver, and Steam VR for seamless teleoperation and training workflows.

• ROS 2 integration

• C++ SDK available

• HandDriver companion application

• Spatial positioning solutions

Applications

Discover how UDEXREAL Glove transforms human-robot interaction across various industries and use cases

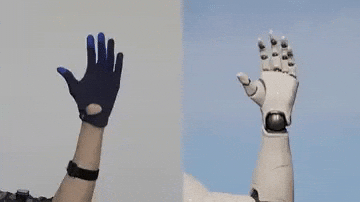

Teleoperation

Teleoperation

Remote control of robotic arms and dexterous hands for intuitive human-robot interaction. Enable precise manipulation and control from a distance.

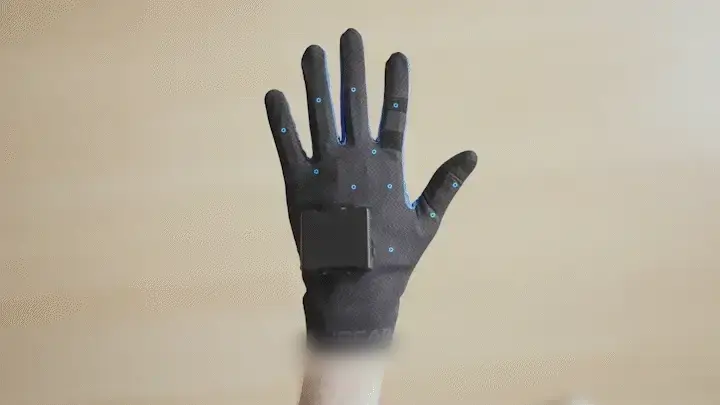

Motion Data Collection

Motion Data Collection

Collect hand motion data to train robots for embodied intelligence applications. Capture precise gestures and movements for AI training.

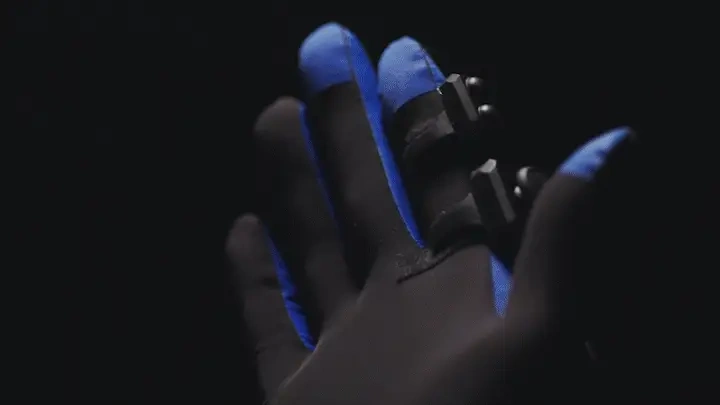

High-Risk Environments

High-Risk Environments

Enable robots to replace humans in high-risk and demanding tasks through remote operation. Operate safely in hazardous conditions.

Oath

Coming Soon

The Data Collection Glove is currently in development. Stay tuned for updates on availability and launch details.

What to Expect:

  • Revolutionary haptic control and teleoperation capabilities
  • Stretchable elastic sensors with 120Hz real-time tracking
  • Full SDK integration for seamless development workflows

Data Collection Glove

Coming Soon

Coming Soon
